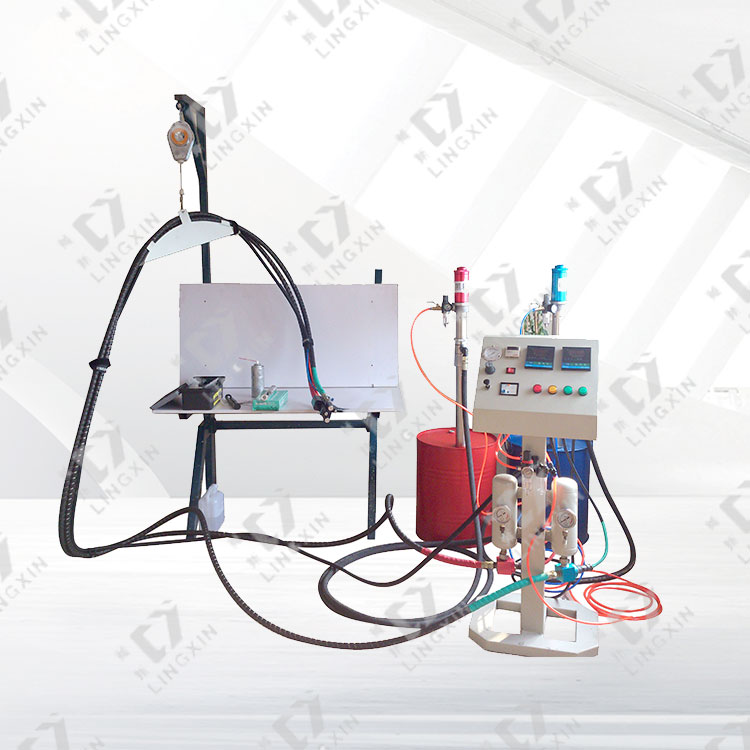

The production of polyurethane buffering foam packaging foam can be selected from pneumatic field foam packaging machine or electric field foam packaging machine. The pictures of the machine are as follows:

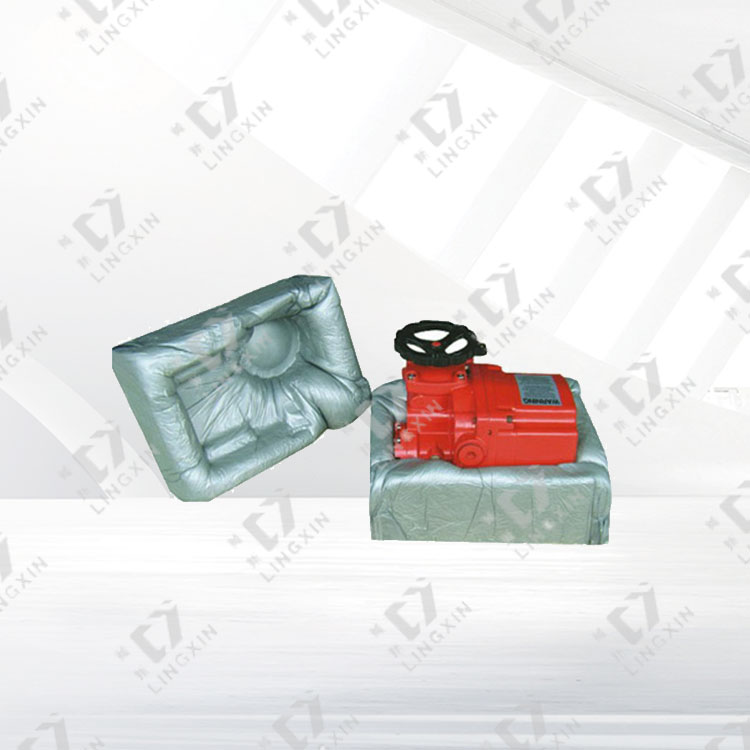

Pneumatic field foam packaging machine is used for packaging all kinds of precision instruments, pneumatic actuators, locks, electronic scales, fans, motors, valves, lamps, auto parts and crafts, etc.
Technical parameters:
raw material ratio
1:1（fixed）
Raw material viscosity range
200～1000CPS (at room temperature）
Raw material output
3～5Kg/min or 50～80g/s
Temperature setting range
0～90℃
power requirement
single phase 220V 50HZ
Pneumatic working pressure
0.6-0.8MPa
air demand
1m3/min
Heat insulation pipe length
6m
Short pipe length of gun
4m
boundary dimension
1100X480X380
??
hauled weight
100Kg
This table is standard model configuration. If it does not conform to the reality, please refer to the additional "machine configuration list" sent randomly.
Electric field foam packaging machine heats raw material A and B in the tube and mixes them proportionally in the nozzle. When the two materials are mixed, the reaction will occur and the polyurethane foam will be generated to protect your product. It consists of four main parts: integrated circuit controller (main engine), two electric feed pumps, an all-electric feed gun and two internal heating thickened feed delivery pipes.
Application: this equipment is used for packing all kinds of precision instruments, pneumatic actuators, locks, electronic scales, fans, motors, valves, lamps, auto parts and handicrafts, etc. It can also be used for small filling thermal insulation foam.
