Car seat production can be used car seat two components of low pressure foam machine, car seat two components of high pressure foam machine and car seat disk line. The picture of the machine is as follows:

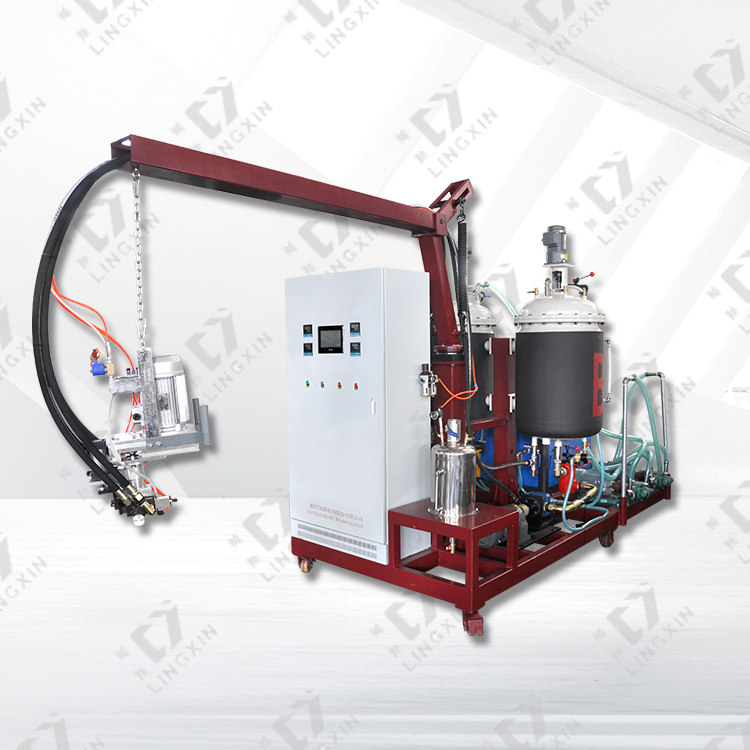

Automobile seat two-component low-pressure foaming machine is a new product independently developed by lingxin company, which has the characteristics of high repeat injection accuracy, even mixing, stable performance, simple operation and high production efficiency.
Application: this model is suitable for the production of car seats and other products.
Equipment technical parameters:
Item/model
total spit out quantity
（g/s）
total power（kw）
Head stirring speed (r/min)
mix proportion
Overall dimensions
(length X width X height)
height（kg）
soft
bubble
RR2-700
125-700g
11
5200
100：50-150
2200*1400*2300
1000

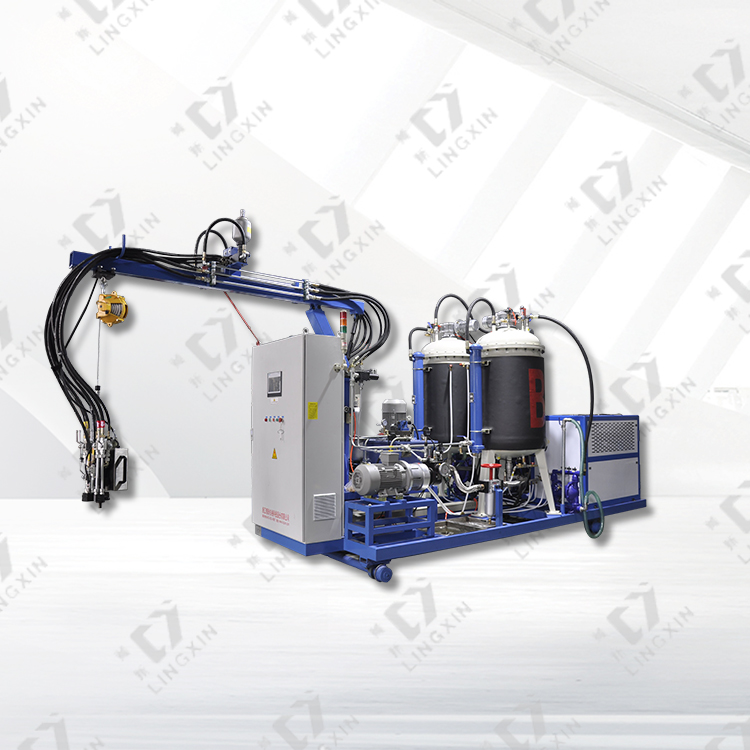

Car seat two components of high pressure foaming machine is liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components was injected into the small mixing chamber with a high speed, high speed collision and mixing effect, make the material liquid evenly, mixing effect is good, no clean, stable performance, easy operation, achieve the goal of high production efficiency and environmental protection.
Application: this model is suitable for the production of car seats and other products.
Equipment technical parameters:
Item/model
H2-L30
H2-L80
Spit out quantity（g/s）
110-520g/s
270-1300g/s
A tank capacity（L）
250/500
250/500
B tank capacity（L）
250/500
250/500
injection pressure（mpa）
5-15
5-15
inject time（S）
0.5-99.99
0.5-99.99
total power（kw）
26
30
height（kg）
1800
1800
The car seat disc line is used for the continuous foaming production of all kinds of car seats. The equipment operates at a constant speed, and the running speed can be adjusted to the production beat. The disk is equipped with a power supply and air source conveying system. It forms a complete foaming production line with mould frame and mould temperature machine.
Equipment application: this production line is suitable for the production of car seats and other products.
Equipment features:
Continuous cycle operation, simple operation, smooth transmission, high production efficiency.
