Door filling production can choose door filling two-component low-pressure foaming machine, door filling two-component high-pressure foaming machine and door filling multi-layer press. The picture of the machine is as follows:
Door to fill two components of low pressure foaming machine is liquid polyols and isocyanates two components of the raw materials respectively stored in two material storage tank, with two rotary precision gear metering pump to the mixed system, the pressure under the action of mixing head open, two components were injected into the small in the mixing chamber, a mixing blade high speed stirring and mixing effect, make the material liquid evenly, to form the required product.
Equipment application: this equipment is specially used for the production of various door filler.
Equipment technical parameters:
unit type
LXPU-RY2-500
LXPU-RY2-800
low rate (g/s)
100-500
160-800

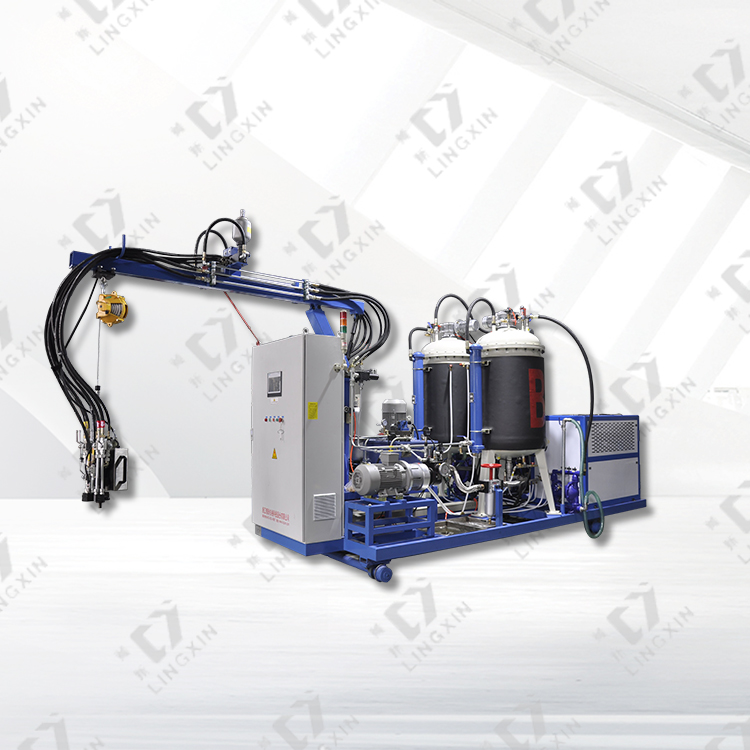

Door to fill two components of high pressure foaming machine is liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components at high pressure and velocity were injected into the small mixing chamber, the high speed collision and mixing effect, make the material liquid evenly, to form the required product.
Equipment application: this equipment is specially used for the production of various door filler.
Equipment technical parameters:
unit type
LXPU-H2-L30
LXPU-H2-L80
Flow rate (g/s)
110-520
270-1300
Door filling multilayer press is mainly used for door panel polyurethane filling foam, the use of hydraulic transmission to open and close the mold, the number of layers can be customized, achieve multilayer foam at the same time, improve the output. The equipment has the characteristics of convenient operation, safety and high production efficiency.
Equipment application: this equipment is specially used for the production of various door filler.
Equipment features:
1. Electrical automation, simple and reliable operation, automatic control of temperature and time to ensure product quality;
2. Hydraulic circuit adopts integrated block combination, compact structure, accurate and reliable system action;
3. Double in and double out steam pipeline to ensure even temperature of hot platen;
4. Low motor power, fast no power drop, saving energy consumption and reducing cost;
